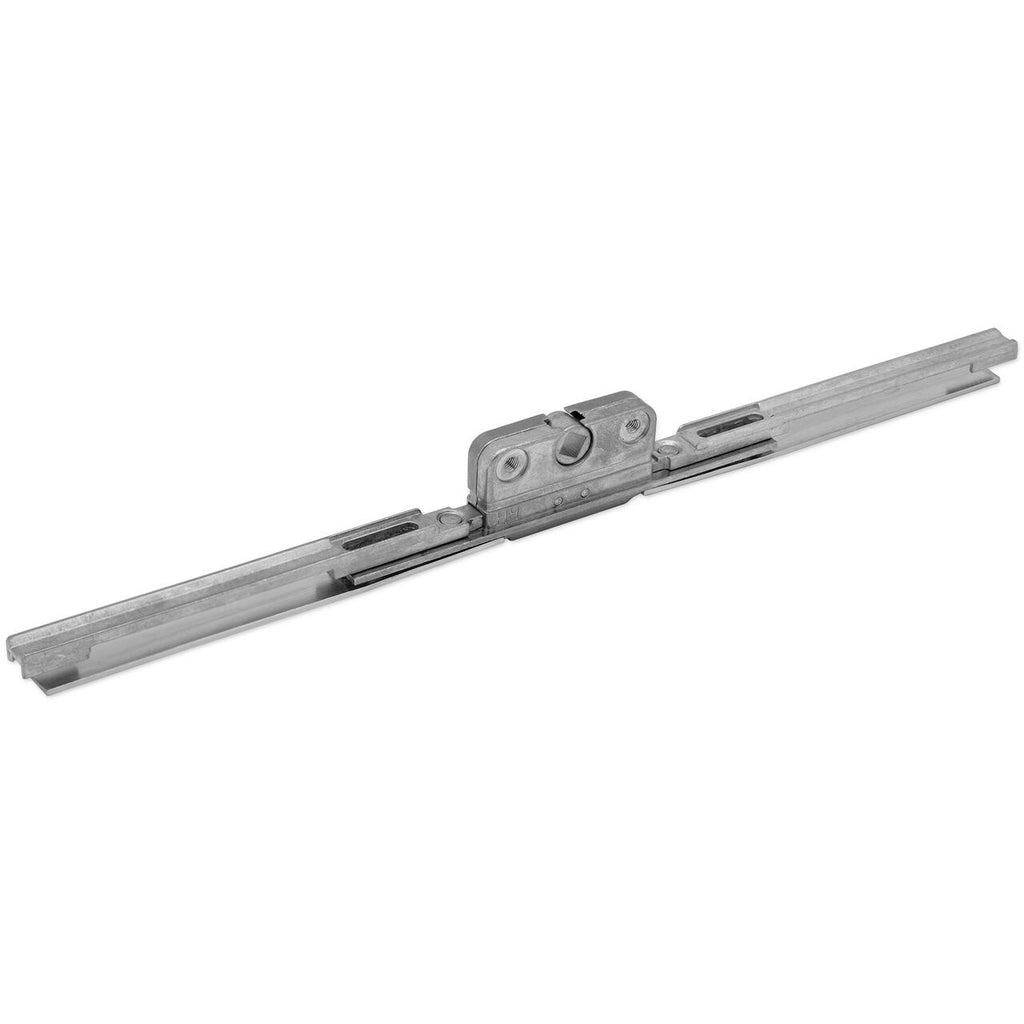

Yale Lockmaster Window Shootbolt Gearbox Lock 340mm 22mm Backset No Cams

This window gearbox will serve as a suitable replacement for both Yale and Lockmaster types which have an overall length of 340mm. This particular gearbox does not have additional cams.

Information

• Backset - 22mm
• No additional cams
• Overall length - 340mm
• Distance between screws - 43mm

Technical

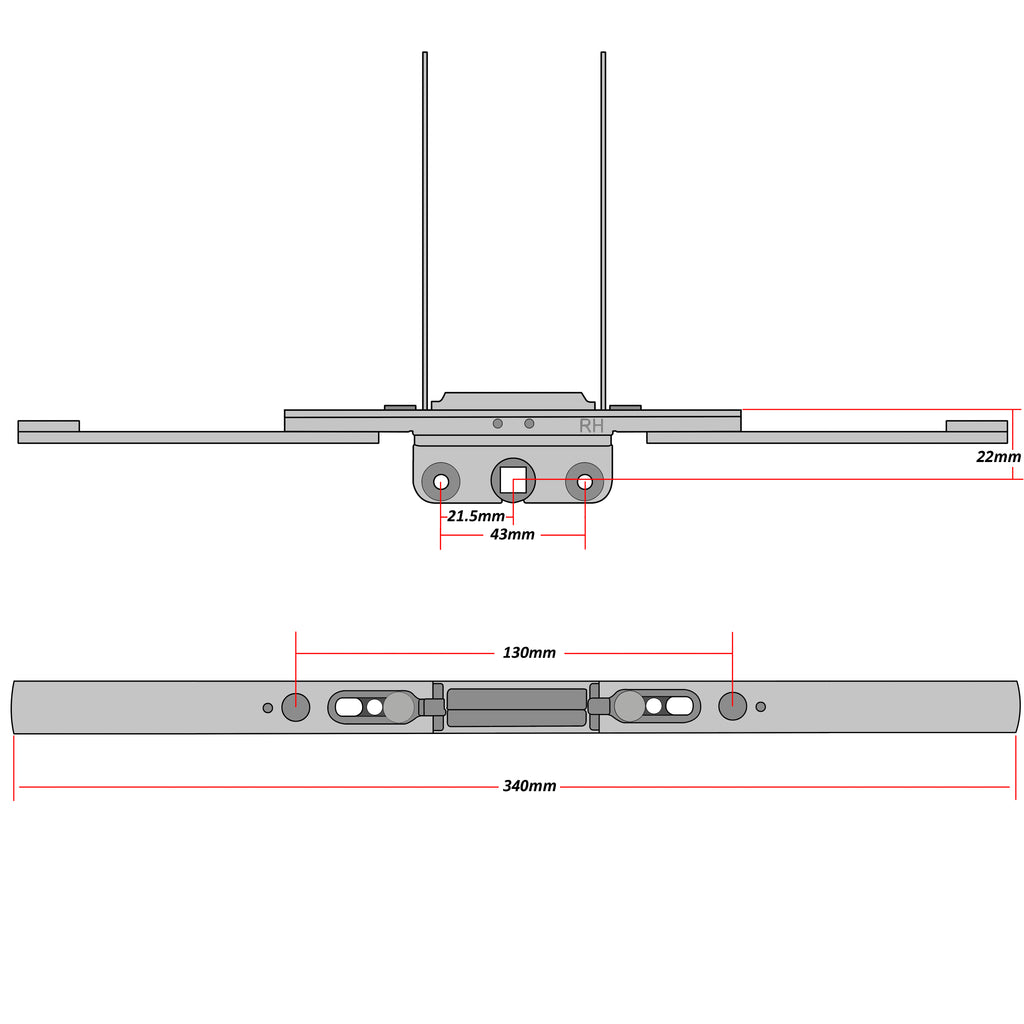

A full technical diagram is included in the image gallery.
