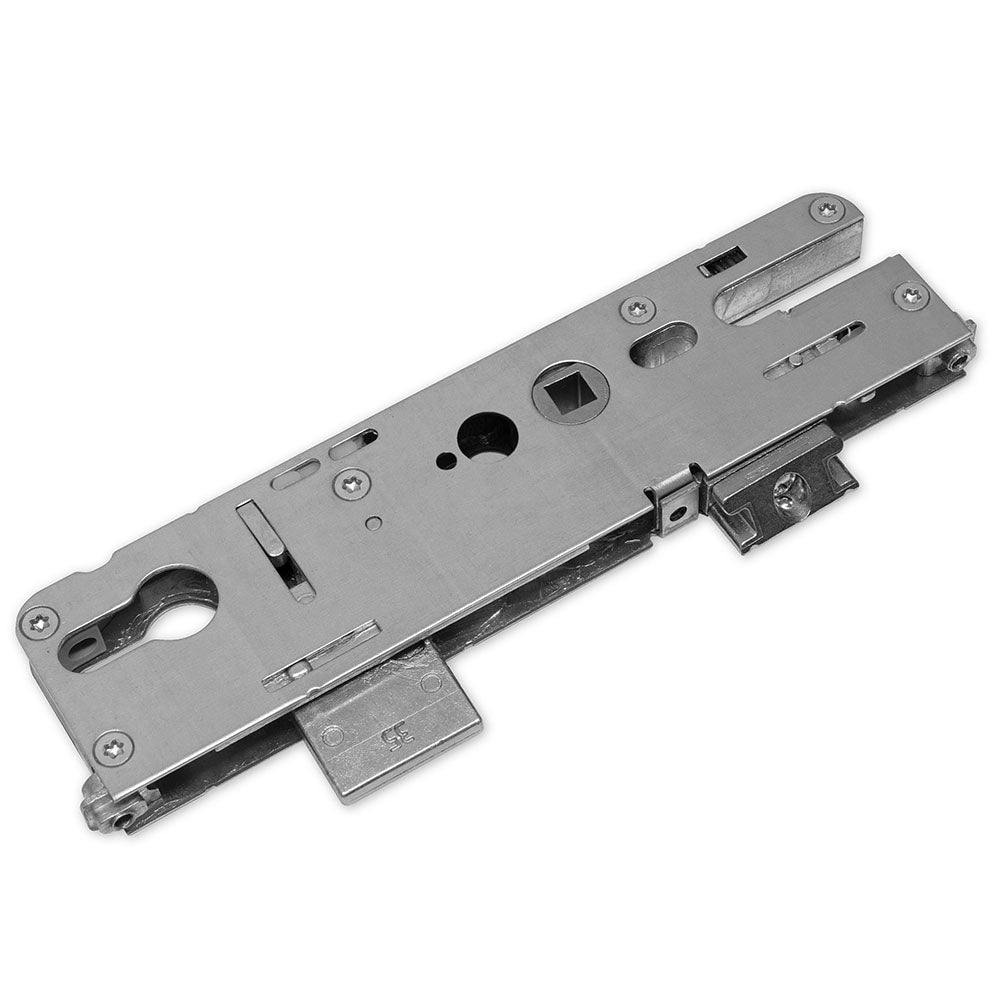

Roto Single Spindle Replacement Door Lock Gearbox Centre Case 35mm

Replacement Roto Door Lock Gearbox 35mm Single Spindle

A replacement centre case gearbox for the Roto multipoint door lock mechanism, also known as a Roto old style gearbox. If you're having problems with your door lock, the gearbox is almost always the problem and changing it is as simple as removing a few screws.

Information

• Important Measurements: 35mm Backset / 92PZ Centres

• This is the mechanism inside the door that is operated by the handle.

• Most likely to be the problem when a lock fails.

• Reversible latch for left or right handed doors

Technical

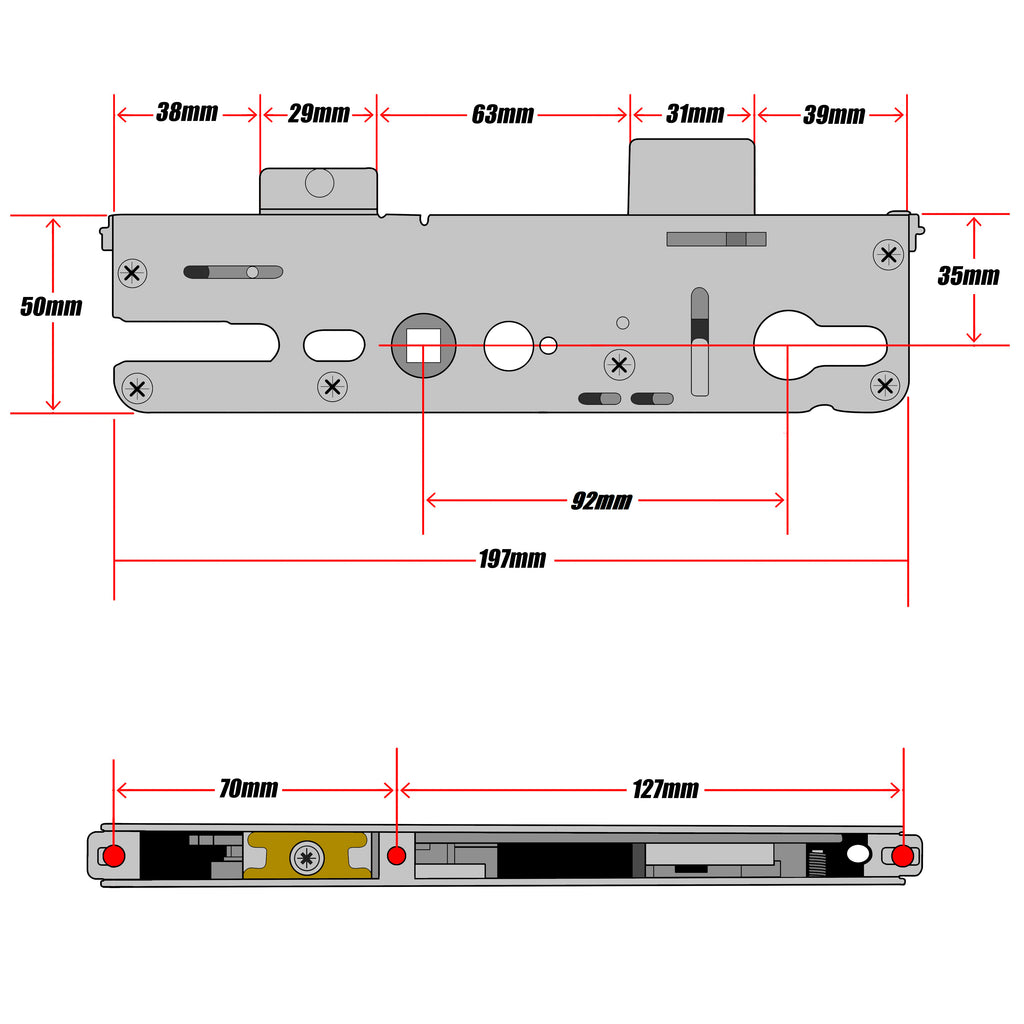

A full technical diagram is included in the image gallery.
