Lockmaster Double Spindle Replacement Door Lock Gearbox Centre Case 35mm

Lockmaster Milamaster Door Lock Gearbox Centre Case 35mm Double Spindle

A replacement centre case for the Lockmaster / Milamaster multipoint door lock mechanism. If you're having problems with your door lock, the gearbox is almost always the problem and changing it is as simple as removing a few screws.

Lockmaster Double Spindle Gearbox 35mm Information

• Important measurements: 35mm Backset / 92mm/62mm PZ Centres
• This is the mechanism inside the door that is operated by the handle
• Most likely to be the problem when a lock fails.
• Reversible latch for left or right handed doors
• Double Spindle - for lever/ lever & lever/pad operation

Technical

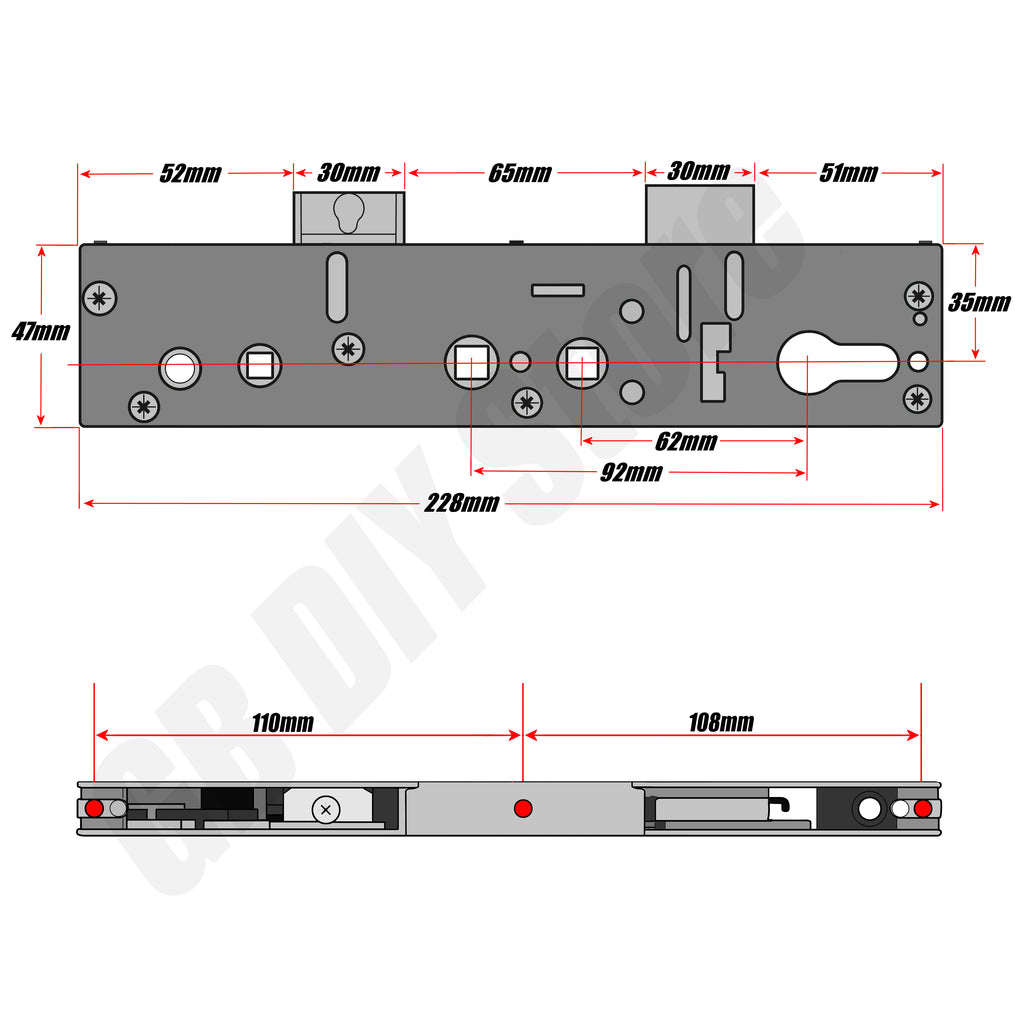

A full technical diagram is included in the image gallery.
