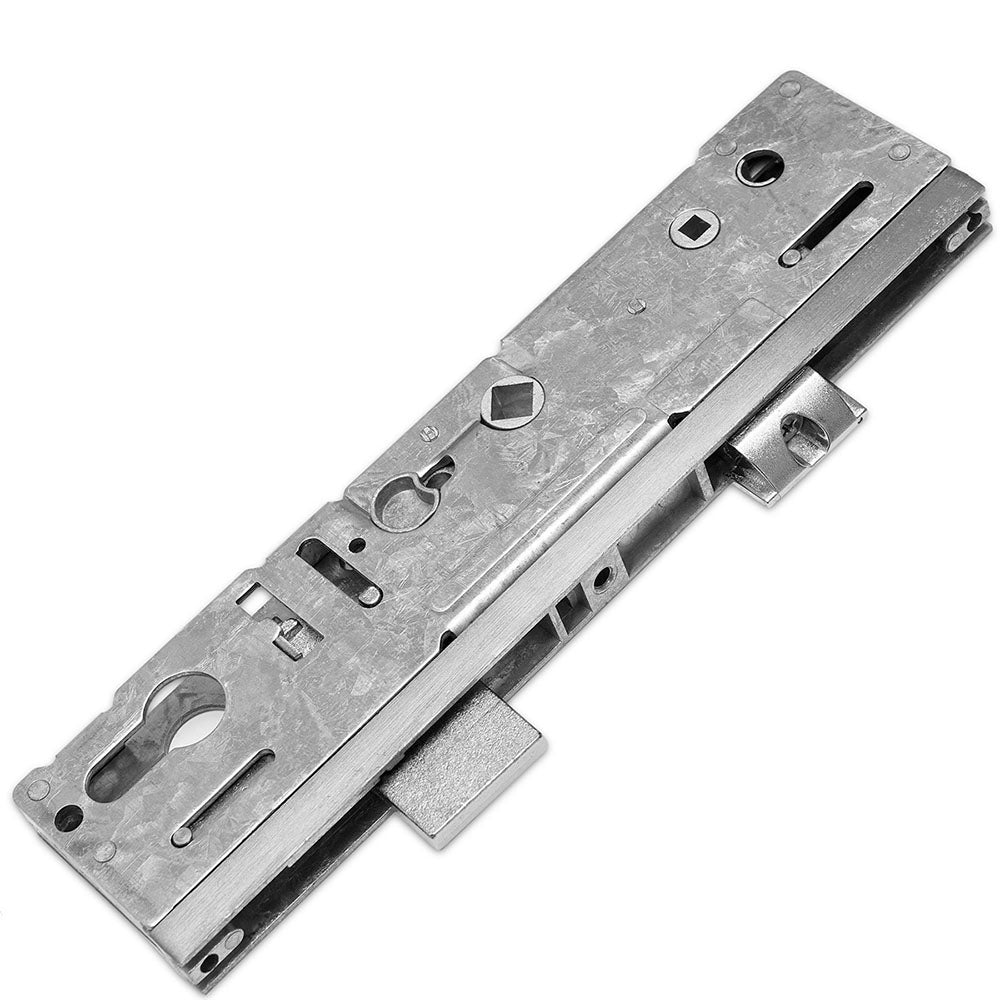

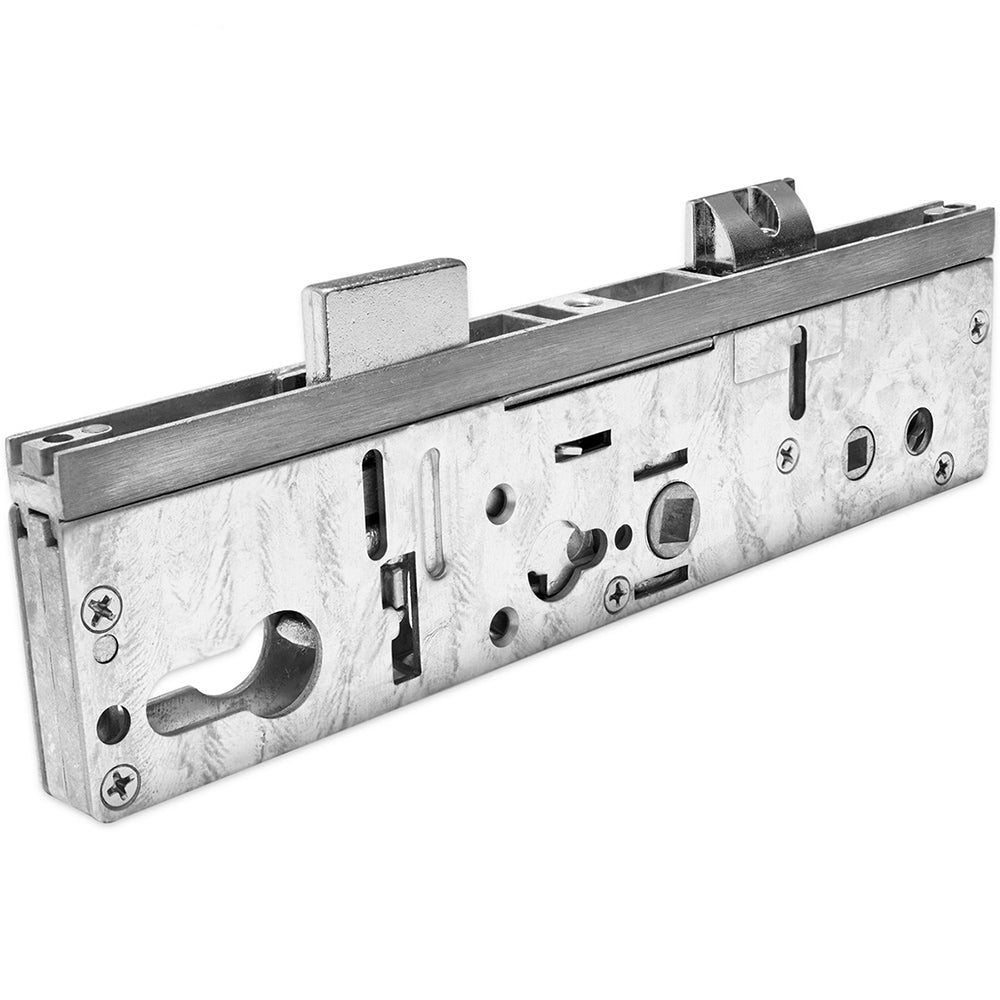

Lockmaster Single Spindle 45mm Backset Replacement Door Lock Gearbox Centre Case

A replacement door lock gearbox centre case for the a lockmaster multipoint door lock. This particular version is a 45mm backset with a single spindle operation. If you're experiencing problems with the operation and function of your door lock then the gearbox is most often the problem.

Information

• 45mm backset
• Single Spindle
• 92mm PZ
• This is the mechanism inside the door that is operated by the handle.
• Most likely to be the problem when a lock fails.
• Reversible latch for left or right handed doors

Technical

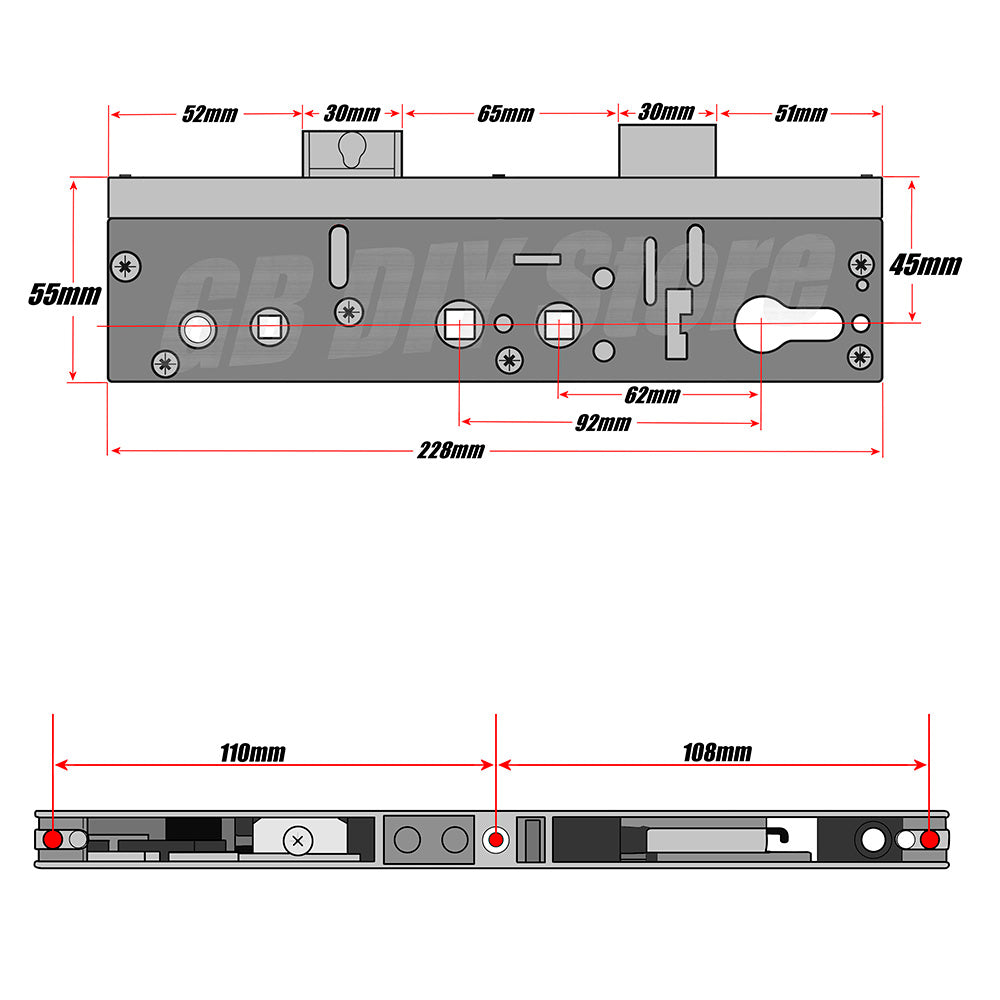

A full technical diagram is included in the image gallery.
