GU New Style 4 Roller Door Lock Mechanism 28mm

GU New Style 4 Roller Multipoint Door Lock 28mm Backset

GU new style 4 roller multipoint replacement door lock. This particular door lock comes with a 28mm backset, latch, deadbolt and 4 rollers for secure locking.

Information

• Single follower operation
• Backset: 28mm
• PZ Centres: 92mm (distance from centre of spindle to centre of keyhole)
• Locking points: 4 Rollers
• Non-Handed (will fit left or right handed doors)

Technical

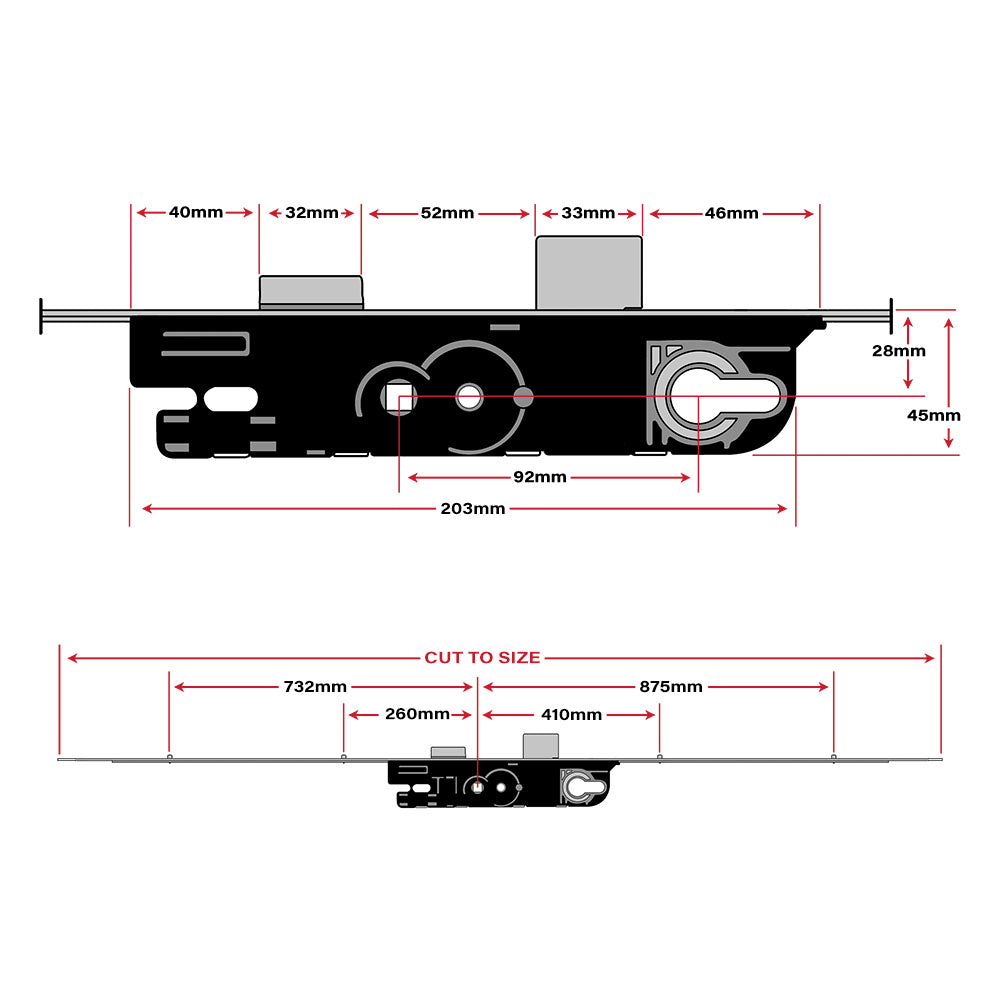

A technical diagram can be found in the image gallery. All measurements taken in the locked position.
