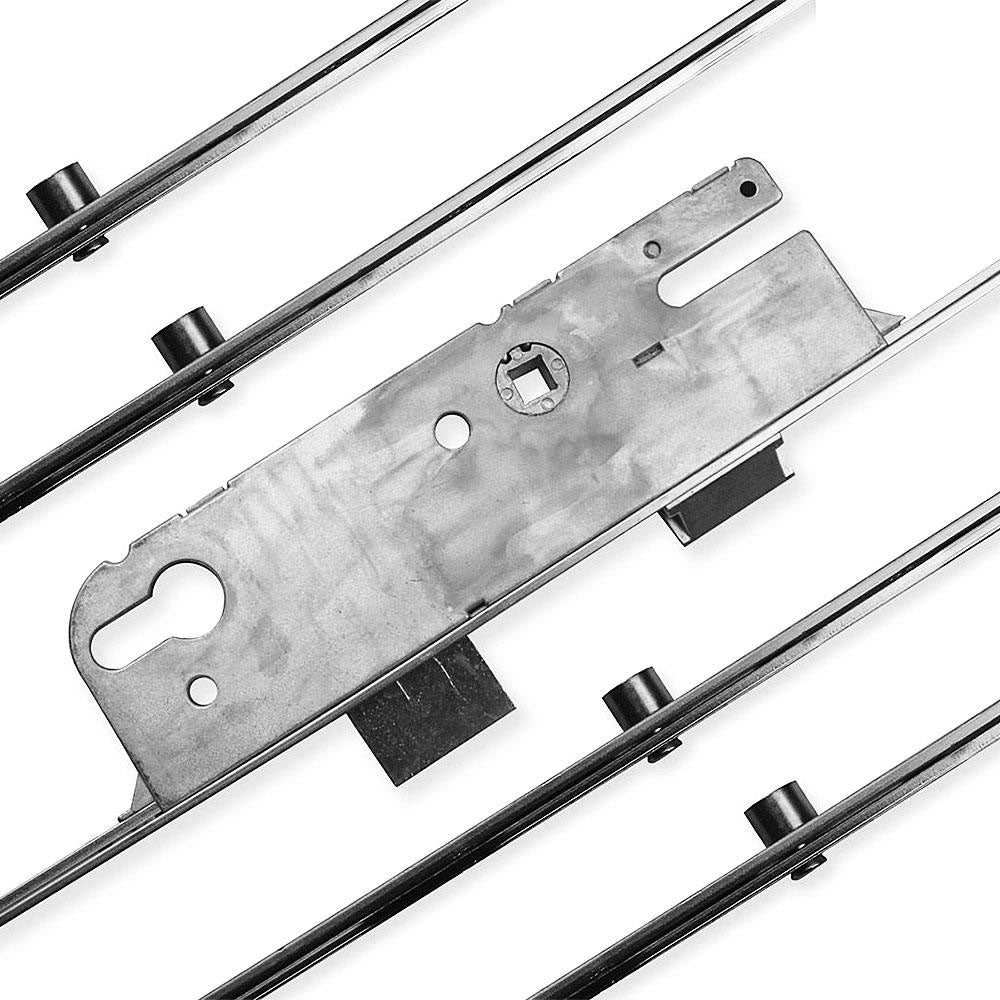

GU 4 Roller Door Lock Mechanism 35mm

GU 4 Roller Multipoint Door Lock 35mm Backset

GU 4 roller multipoint replacement door lock. This particular door lock comes with a 35mm backset, latch, deadbolt and 4 rollers for secure locking.

Information

• Single follower operation
• Backset: 35mm
• PZ Centres: 92mm (distance from centre of spindle to centre of keyhole)
• Locking points: 4 Rollers
• Non-Handed (will fit left or right handed doors)

Technical

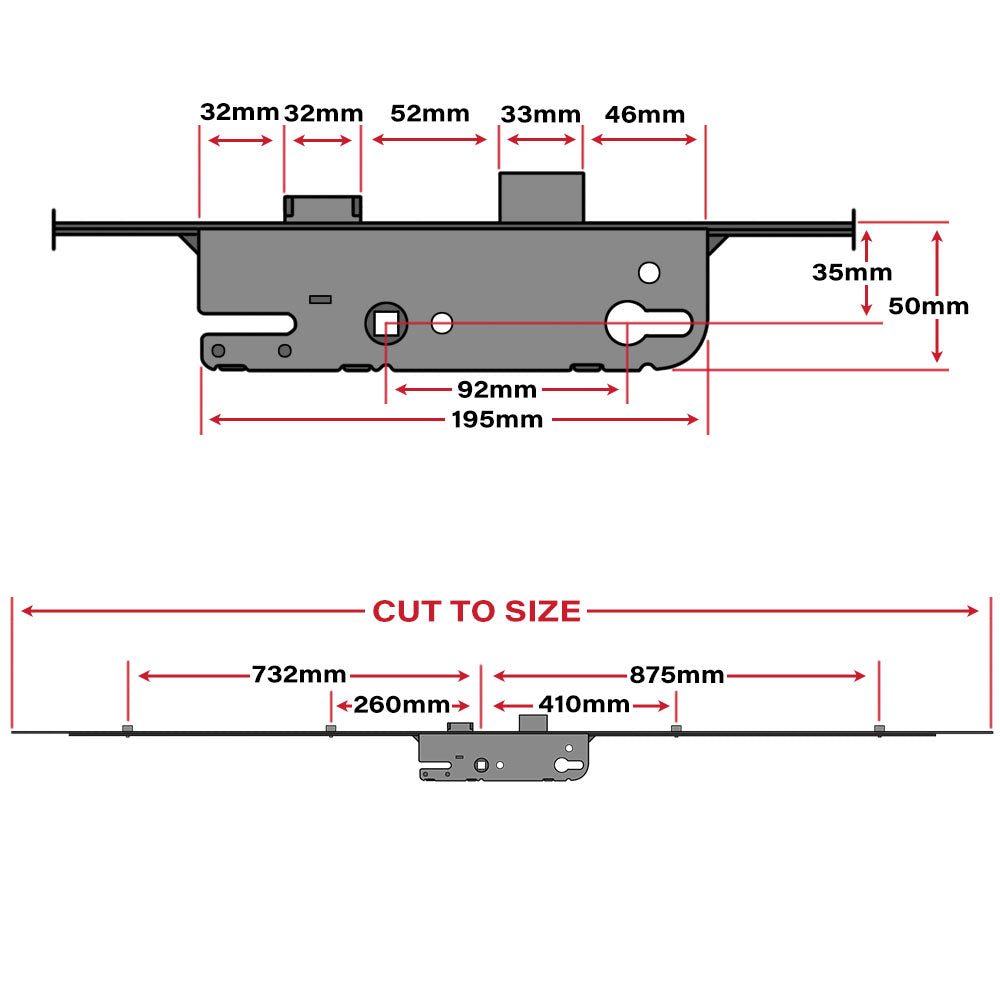

A technical diagram can be found in the image gallery. All measurements taken in the locked position.
