Genuine Lockmaster Double Spindle Replacement Door Lock Gearbox Centre Case 35mm

Lockmaster Double Spindle Door Lock Gearbox 35mm

A genuine replacement centre case for the Lockmaster / Milamaster multipoint door lock mechanism. If you're having problems with your door lock, the gearbox is almost always the problem and changing it is as simple as removing a few screws.

Genuine Lockmaster / Milamaster Gearbox Centre Case 35mm Double Spindle Information

• Important measurements: 35mm Backset / 92mm/62mm PZ Centres

• This is the mechanism inside the door that is operated by the handle.

• Most likely to be the problem when a lock fails.

• Reversible latch for left or right handed doors

• Double Spindle - for lever/ lever & lever/pad operation

Technical

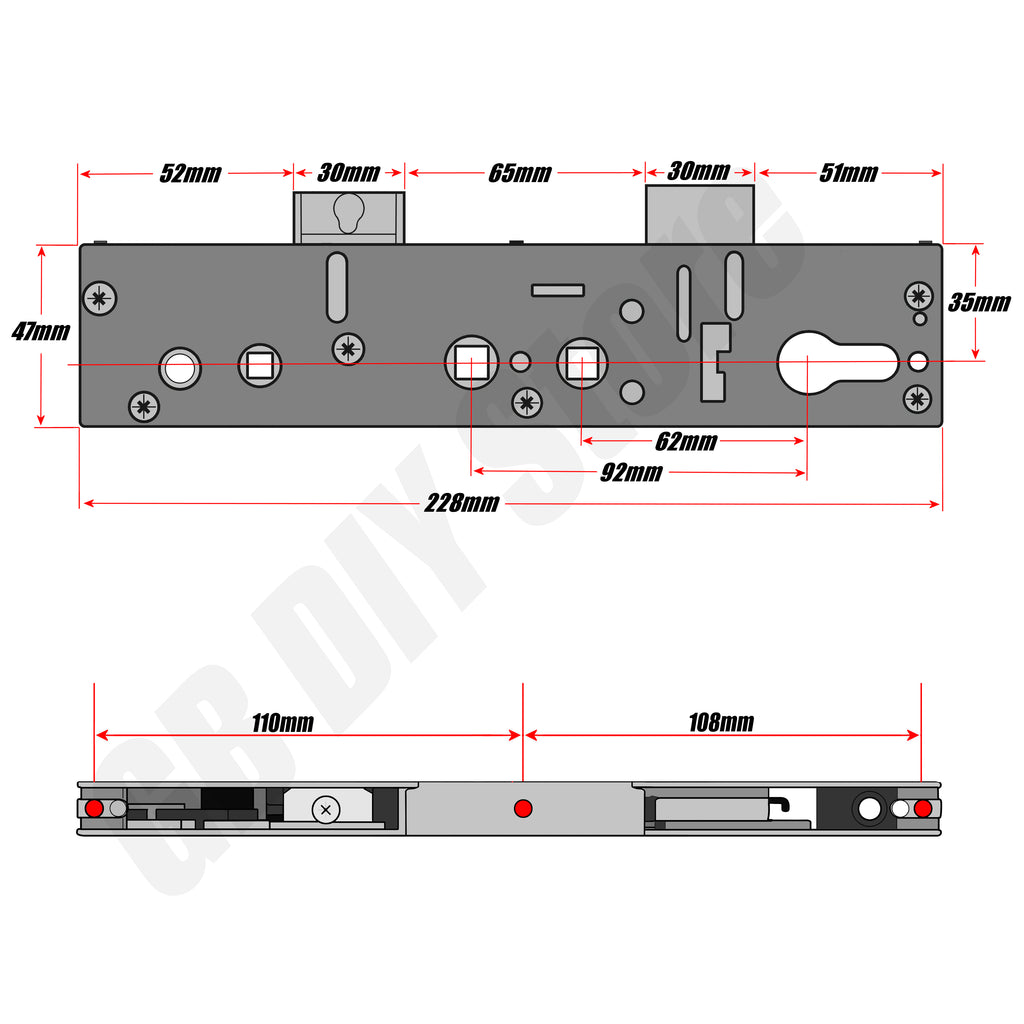

A full technical diagram is included in the image gallery.
